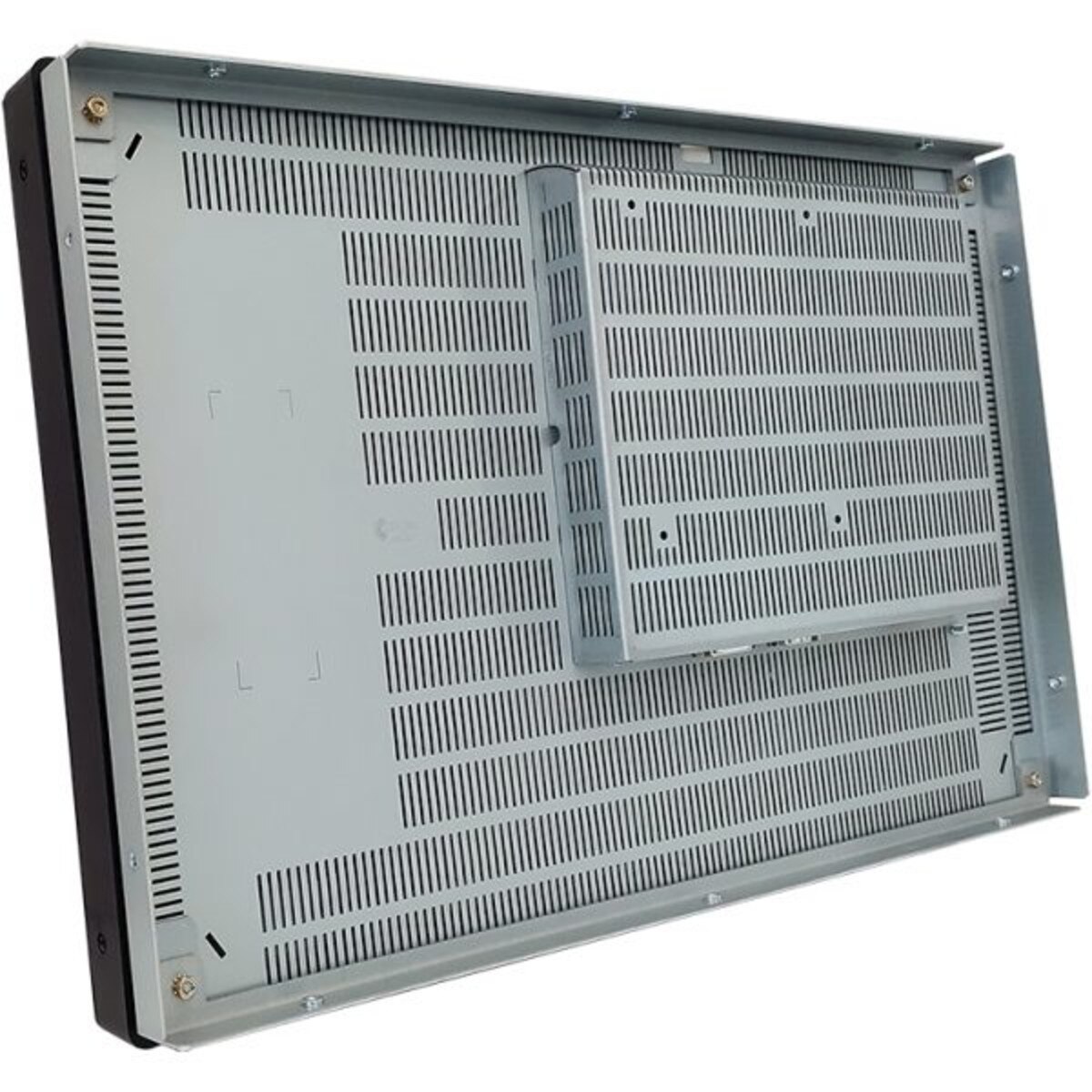

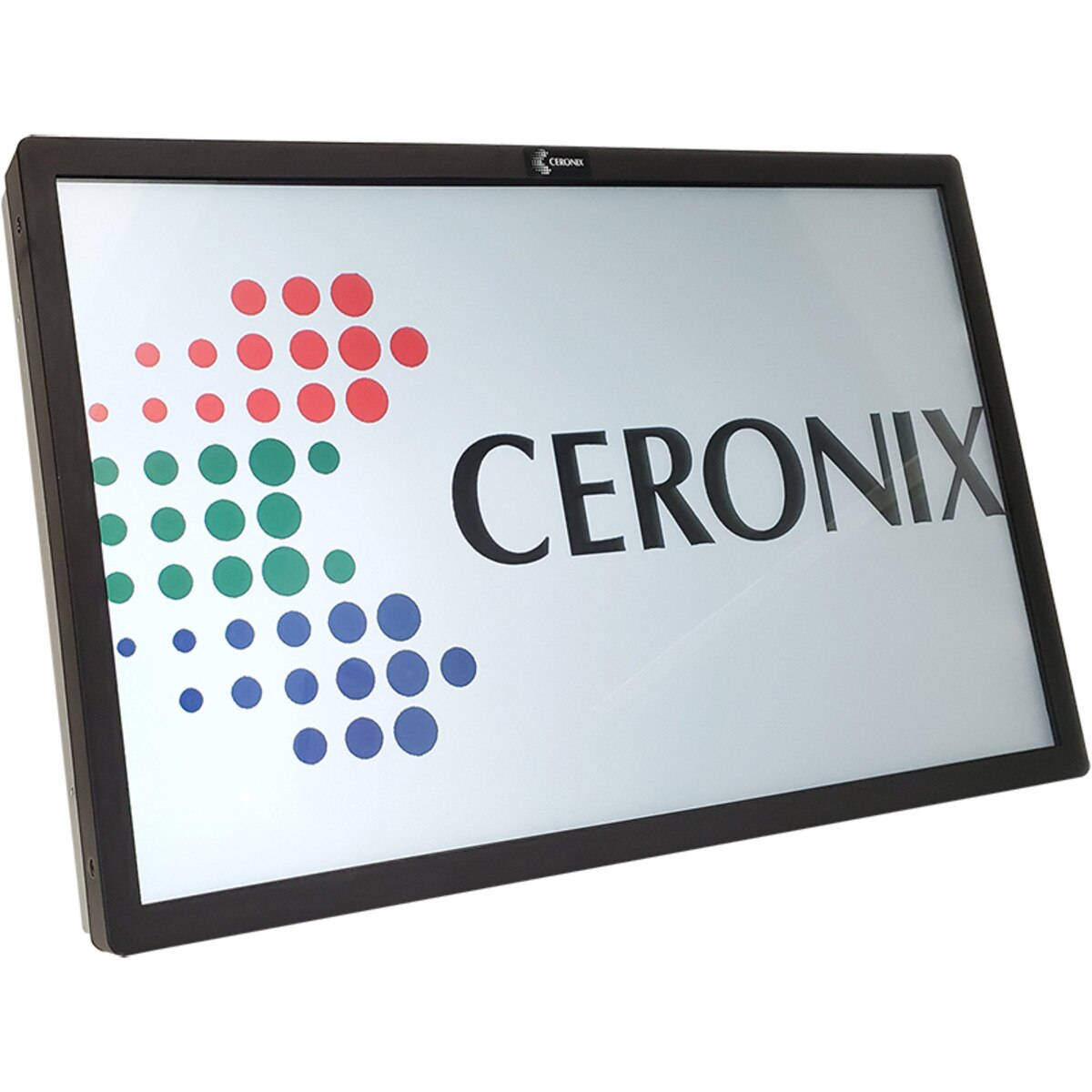

Ceronix CPA5092 22" LCD Monitor for Konami Podium Games
Ceronix CPA5092A 22" LCD monitor with Serial Touchscreen used on Konami KP3 Podium 22" upright & Slant top slot machine.
Ref. | CPA5092A / CPA3022 |
Dimensions | 10 × 27 × 19 in |
EDID | A:22_72 / D:22_E7 |
AD Board | CPM3044 |
AD Board Version | 2AM |
Aspect Ratio | 16:10 |
Game Model | Podium, Upright & Slant |
Includes a Game Bezel | No |
Inverter or LED Driver | CPM2236A |
Panel Type | TN |
Power Type | DC |
Touch Controller | CPM2359E |
Touch Sensor | CPM2488K |
Viewing Angle | Standard |
Downloads:
- Tech specifications
- Product Brochure
We are constantly developing new documents and support materials for our customers.
Please submit your inquires on the Sales Support tab.
