  • APC BR1000MS UPS , Back UPS PRO BR 1000VA, SineWave, 10 Outlets, 2 USB Charging Ports, AVR, LCD interface

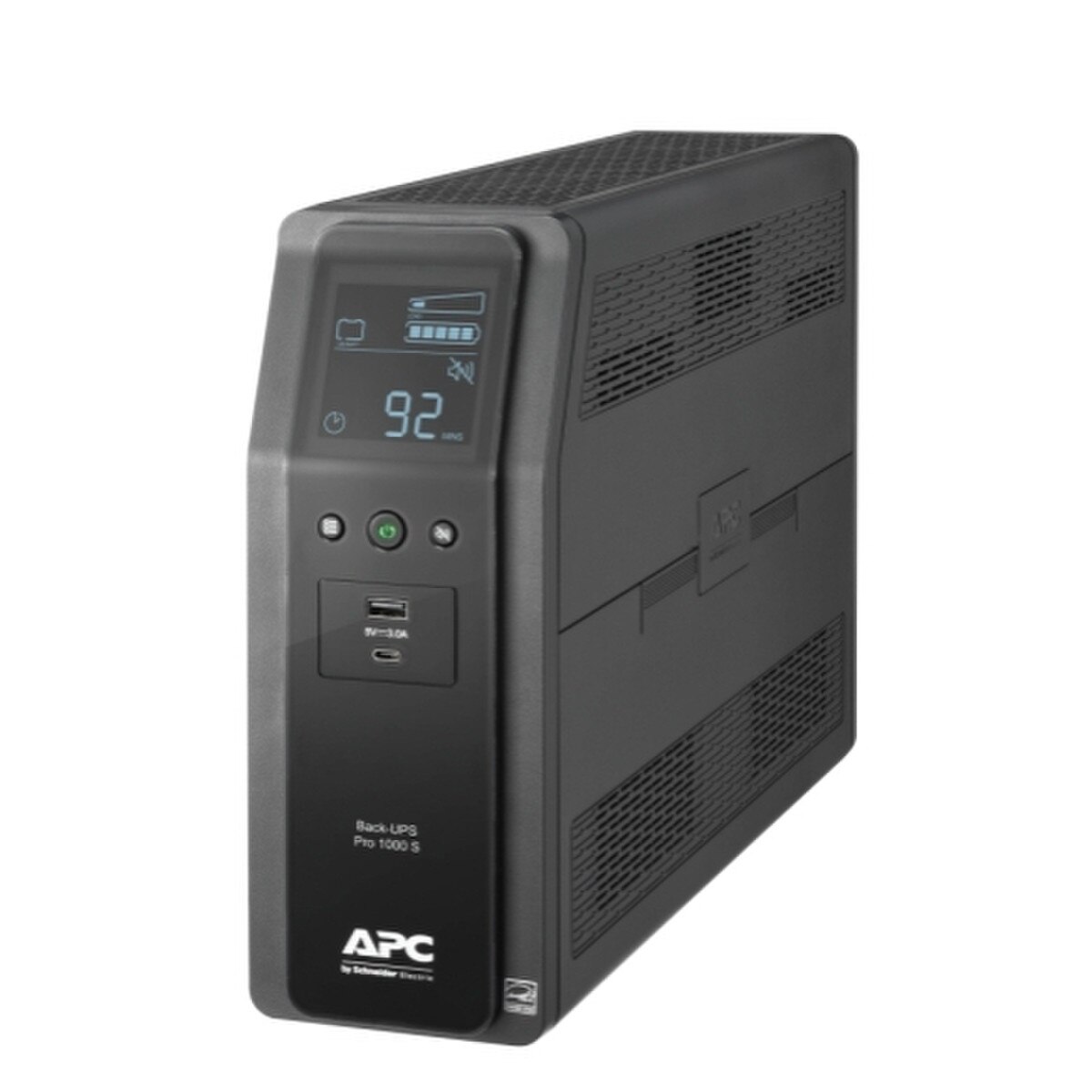

APC BR1000MS UPS , Back UPS PRO BR 1000VA, SineWave, 10 Outlets, 2 USB Charging Ports, AVR, LCD interface

(0)No Reviews yet
$249.17
SKU: 101816
MPN: BR1000MS
DESCRIPTION:
Back UPS PRO BR 1000VA, SineWave, 10 Outlets, 2 USB Charging Ports, AVR, LCD interface
High Performance Computer and Electronics UPS for Premium Power Protection
Includes: Coaxial cable, USB cable, User manual
ENERGY STAR Certified
RoHS

Available to Order

NEW

Audible alarms
• Provides notification of changing utility power and UPS power conditions
Automatic self-test
• Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery replacement without tools
• Enables fast battery replacement, lowering Mean Time to Repair (MTTR).
Boost and Trim Automatic Voltage Regulation (AVR)
• Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Building Wiring Fault Indicator
• This LED informs users of potentially dangerous wiring problems in the wall circuit.
Catastrophic Event Protection
• SurgeArrest components such as MOVs and Thermal fuse ensure instantaneous reaction to lightning strikes and wiring faults. If the surge components are damaged due to power spike or over voltage, excess power cannot reach your equipment. Unlike the APC SurgeArrest products, most surge suppressors continue to let power through even after circuits have been damaged, leaving your equipment exposed to other damaging surges.
Dataline surge protection
• Provides protection of connected equipment from power surges on the data lines.
EMI and RFI noise filtering
• Reduces line noise that can cause data loss and keyboard errors.
ENERGY STAR for UPS
• Establishes that the efficiency of the UPS is in the top 25% of the market as verified by third party testing
Hot-swappable batteries
• Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
LCD graphics display
• Text and mimic diagrams that display modes of operation, system parameters and alarms.
Lifetime data recovery warranty
• Provides peace of mind by providing professional data recovery services in the event data is lost due to the failure of the unit.
Performance Gaming Design
• Specially designed for performance gaming equipment, this battery backup protects gaming PCs, consoles and accessories from damaging power surges, interruptions and outages.
PowerChute Personal Edition OS Compatibility
• This software supports numerous operating systems and processors. For further information, please bra href="https://www.apc.com/wp/?um=300"click here./a
RoHS
• Certifies that electronic devices don't contain hazardous metals and flame retardants
Sine wave output
• Eliminates humming and heat generated when powering tube lights and fans
USB charging ports
• Simultaneously charge mobile devices, including smartphones and tablets.
User-replaceable batteries
• Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
High Performance Computer and Electronics UPS for Premium Power Protection
• Manufacturer: APC
• Manufacturer PN: BR1000MS

Output
Max Configurable Power (Watts)
• 600 Watts / 1.0kVA
Output Frequency (sync to mains)
• 60 Hz +/- 3 Hz Sync to mains
Topology
• Line interactive
Waveform type
• Sine wave
Transfer Time
• 8 ms typical : 10 ms maximum

Input
Input frequency
• 60 Hz +/- 3 Hz
Input voltage range for main operations
• 88 - 147V
Number of Power Cords
• 1

Batteries & Runtime
Battery type
• Lead-acid battery
Included Battery Modules
• 1
Typical recharge time
• 16hour(s)
Nominal Battery Voltage
• 24 V
Replacement Battery
• APCRBC160
Expected Battery Life (years)
• 3 - 5
RBC Quantity
• 2
Battery Charge Power (Watts)
• 8 Watts
Battery Volt-Amp-Hour Capacity
• 131

Communications & Management
Interface Port(s)
• USB
Control panel
• Multifunction LCD status and control console
Audible Alarm
• Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
• 1080Joules
Data Line Protection
• Coaxial video/cable protection, RJ45 network line - 10/100/1000 Base-T Ethernet
Filtering
• Full time multi-pole noise filtering : 5% of IEEE surge let-through : zero clamping response time: instantaneous

Physical
Maximum Height
• 10.24inches (260MM, 26.0CM)
Maximum Width
• 3.94inches (100MM, 10.0CM)
Maximum Depth
• 14.49inches (368MM, 36.8CM)
Net Weight
• 22.49lbs. (10.2KG)
Shipping weight
• 26.01lbs. (11.8KG)
Shipping Height
• 14.12inches (359MM, 35.87CM)
Shipping Width
• 8.78inches (223MM, 22.3CM)
Shipping Depth
• 18.98inches (482MM, 48.2CM)
Color
• Black
Master Carton Dimensions (Length x Width x Height)
• 14 x 9 x 19inches (356 x 229 x 483MM)
Master Carton Units
• 1.0
Master Carton Weight
• 26.01lbs. (11.8)
Units per Pallet
• 16.0
SCC Codes
• 10731304335389

Environmental
Operating Temperature
• 32 - 104 °F (0 - 40 °C)
Operating Relative Humidity
• 0 - 95 (Non-condensing) %
Operating Elevation
• 0 - 10000ft (0 - 3048meters)
Storage Temperature
• -15 - 40 °C
Storage Relative Humidity
• 0 - 95 (Non-condensing) %
Storage Elevation
• 0 - 10000ft (0 - 3048meters)
Audible noise at 1 meter from surface of unit
• 45.0dBA

Conformance
Approvals
• ENERGY STAR V2.0 (USA), FCC part 15 class B, NOM, TUV C-US certified
Equipment protection policy
• Lifetime : $250000
Standard warranty
• 3 years repair or replace

Sustainable Offer Status
RoHS
• Compliant

Downloads:

  • Tech specifications
CasinoTech PN 101816 Tech Sheet
  • Product Brochure
