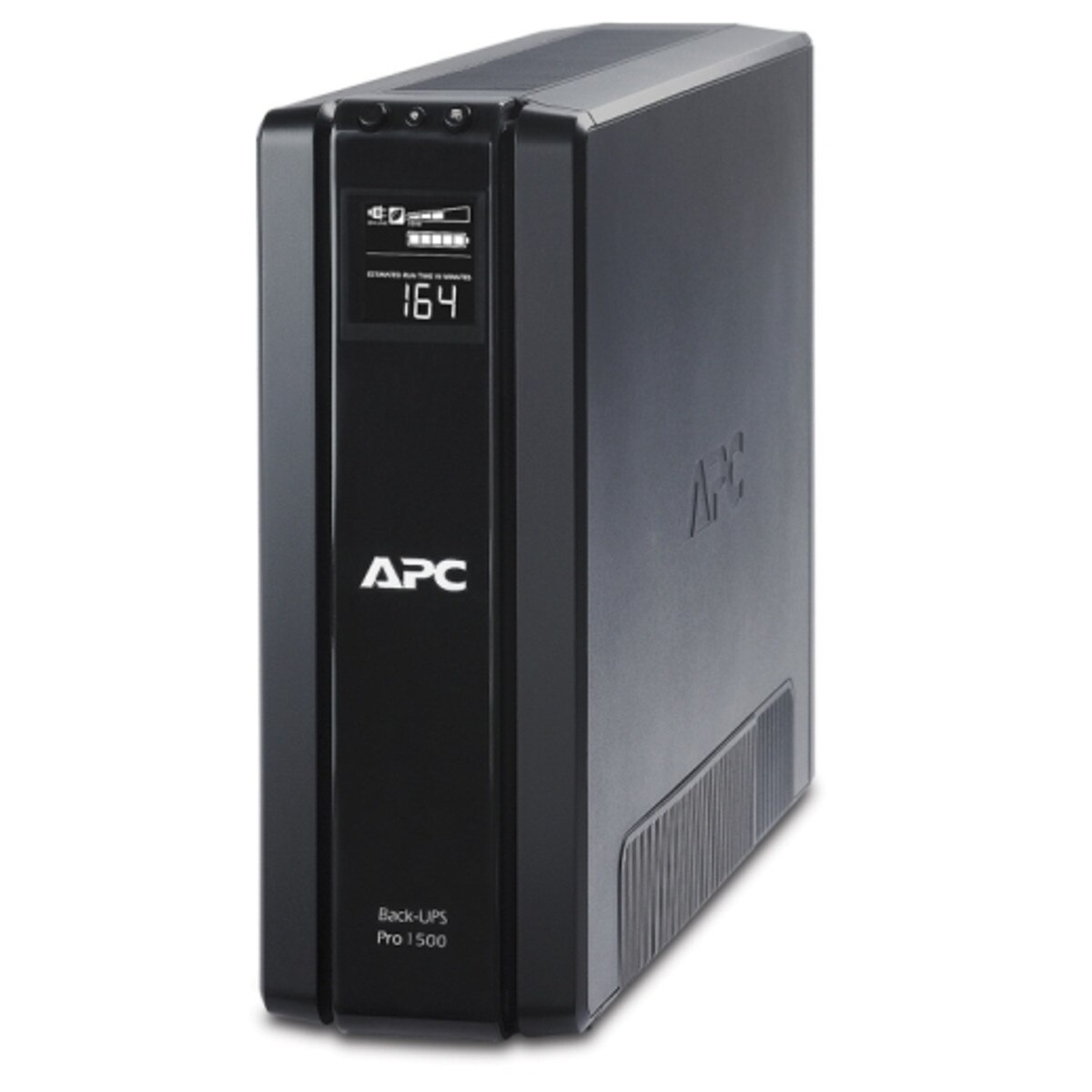

APC BR1500G APC Power Saving Back-UPS Pro 1500
Building Wiring Fault Indicator
• This LED informs users of potentially dangerous wiring problems in the wall circuit.
Extendable runtime
• Connect additional batteries to your UPS to provide extended runtime in the event of a power outage.
Hot-swappable batteries
• Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Lifetime data recovery warranty
• Provides peace of mind by providing professional data recovery services in the event data is lost due to the failure of the unit.
• This LED informs users of potentially dangerous wiring problems in the wall circuit.
Extendable runtime
• Connect additional batteries to your UPS to provide extended runtime in the event of a power outage.
Hot-swappable batteries
• Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Lifetime data recovery warranty
• Provides peace of mind by providing professional data recovery services in the event data is lost due to the failure of the unit.
• Manufacturer: APC
• Manufacturer PN: BR1500G
Output
Max Configurable Power (Watts)
• 865 Watts / 1.5kVA
Output Frequency (sync to mains)
• 50/60 Hz +/- 3 Hz Sync to mains
Topology
• Line interactive
Waveform type
• Stepped approximation to a sinewave
Transfer Time
• 8 ms typical : 12 ms maximum
Input
Input frequency
• 50/60 Hz +/- 3 Hz Auto-sensing
Batteries & Runtime
Battery type
• Lead-acid battery
Included Battery Modules
• 1
Typical recharge time
• 8hour(s)
Nominal Battery Voltage
• 24 V
Replacement Battery
• APCRBC124
Expected Battery Life (years)
• 3 - 5
RBC Quantity
• 1
Battery Charge Power (Watts)
• 23 Watts
Battery Volt-Amp-Hour Capacity
• 187
Runtime
• View Runtime Graph
Efficiency
• View Efficiency Graph
Communications & Management
Interface Port(s)
• USB
Control panel
• Multifunction LCD status and control console
Audible Alarm
• Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
• 354Joules
Data Line Protection
• Cable modem/video protection, RJ45 network line - 10/100/1000 Base-T Ethernet
Filtering
• Full time multi-pole noise filtering : 5% of IEEE surge let-through : zero clamping response time: instantaneous
Physical
Maximum Height
• 11.85inches (301MM, 30.1CM)
Maximum Width
• 4.41inches (112MM, 11.2CM)
Maximum Depth
• 15.04inches (382MM, 38.2CM)
Net Weight
• 26.68lbs. (12.1KG)
Shipping weight
• 29.43lbs. (13.35KG)
Shipping Height
• 15.24inches (387MM, 38.7CM)
Shipping Width
• 9.37inches (238MM, 23.8CM)
Shipping Depth
• 19.21inches (488MM, 48.8CM)
Master Carton Units
• 1.0
Units per Pallet
• 20.0
SCC Codes
• 10731304268779
Environmental
Operating Temperature
• 32 - 104 °F (0 - 40 °C)
Operating Relative Humidity
• 0 - 95 %
Operating Elevation
• 0 - 30000ft (0 - 9144meters)
Storage Temperature
• -15 - 45 °C
Storage Relative Humidity
• 0 - 95 %
Storage Elevation
• 0 - 50000ft (0 - 15240meters)
Audible noise at 1 meter from surface of unit
• 45.0dBA
Conformance
Approvals
• ENERGY STAR V2.0 (USA), FCC part 15 class B, NOM, TÜV, UL 1778
Equipment protection policy
• Lifetime : $150000
Standard warranty
• 3 years repair or replace
Sustainable Offer Status
RoHS
• Compliant
PEP
• Available in Documentation tab
EOLI
• Available in Documentation tab
Proposition 65 Warning
• Available in Documentation tab
• Manufacturer PN: BR1500G
Output
Max Configurable Power (Watts)
• 865 Watts / 1.5kVA
Output Frequency (sync to mains)
• 50/60 Hz +/- 3 Hz Sync to mains
Topology
• Line interactive
Waveform type
• Stepped approximation to a sinewave
Transfer Time
• 8 ms typical : 12 ms maximum
Input
Input frequency
• 50/60 Hz +/- 3 Hz Auto-sensing
Batteries & Runtime
Battery type
• Lead-acid battery
Included Battery Modules
• 1
Typical recharge time
• 8hour(s)
Nominal Battery Voltage
• 24 V
Replacement Battery
• APCRBC124
Expected Battery Life (years)
• 3 - 5
RBC Quantity
• 1
Battery Charge Power (Watts)
• 23 Watts
Battery Volt-Amp-Hour Capacity
• 187
Runtime
• View Runtime Graph
Efficiency
• View Efficiency Graph
Communications & Management
Interface Port(s)
• USB
Control panel
• Multifunction LCD status and control console
Audible Alarm
• Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
• 354Joules
Data Line Protection
• Cable modem/video protection, RJ45 network line - 10/100/1000 Base-T Ethernet
Filtering
• Full time multi-pole noise filtering : 5% of IEEE surge let-through : zero clamping response time: instantaneous
Physical
Maximum Height
• 11.85inches (301MM, 30.1CM)
Maximum Width
• 4.41inches (112MM, 11.2CM)
Maximum Depth
• 15.04inches (382MM, 38.2CM)
Net Weight
• 26.68lbs. (12.1KG)
Shipping weight
• 29.43lbs. (13.35KG)
Shipping Height
• 15.24inches (387MM, 38.7CM)
Shipping Width
• 9.37inches (238MM, 23.8CM)
Shipping Depth
• 19.21inches (488MM, 48.8CM)
Master Carton Units
• 1.0
Units per Pallet
• 20.0
SCC Codes
• 10731304268779
Environmental
Operating Temperature
• 32 - 104 °F (0 - 40 °C)
Operating Relative Humidity
• 0 - 95 %
Operating Elevation
• 0 - 30000ft (0 - 9144meters)
Storage Temperature
• -15 - 45 °C
Storage Relative Humidity
• 0 - 95 %
Storage Elevation
• 0 - 50000ft (0 - 15240meters)
Audible noise at 1 meter from surface of unit
• 45.0dBA
Conformance
Approvals
• ENERGY STAR V2.0 (USA), FCC part 15 class B, NOM, TÜV, UL 1778
Equipment protection policy
• Lifetime : $150000
Standard warranty
• 3 years repair or replace
Sustainable Offer Status
RoHS
• Compliant
PEP
• Available in Documentation tab
EOLI
• Available in Documentation tab
Proposition 65 Warning
• Available in Documentation tab
