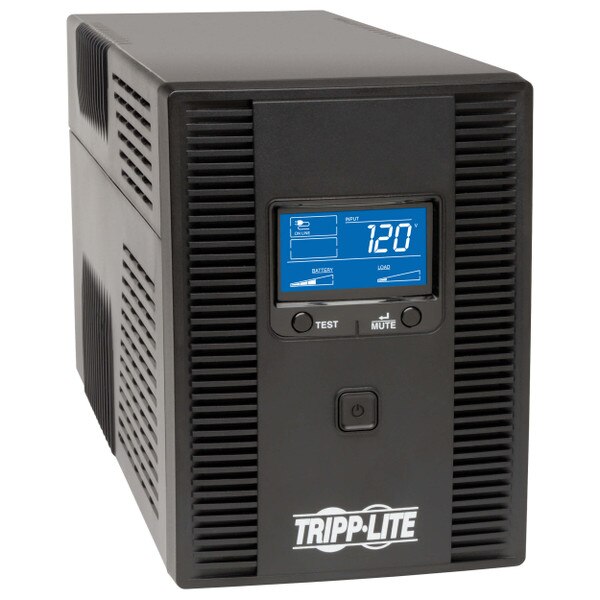

Tripp Lite OMNI1500LCDT UPS OmniSmart LCD 120V 50/60Hz 1500VA 810W Line-Interactive UPS, Tower, LCD display, USB port, Energy Star V2.0
INPUT • Rated input current (Maximum Load) 12A • Nominal Input Voltage(s) Supported 120V AC • UPS Input Connection Type 5-15P • Input Circuit Breakers 15A • UPS Input Cord Length (ft.) 6 • Recommended Electrical Service 15A 120V • Input Phase Single-Phase OUTPUT • Output Volt Amp Capacity (VA) 1500 • Output Capacity (kVA) 1.5 • Output Watt Capacity (Watts) 810 • Nominal Voltage Details 120v nominal output in battery mode • Frequency Compatibility 50 / 60 Hz • Frequency Compatibility Details Automatic frequency selection • Output Voltage Regulation (Line Mode) 120V (+9% / -12%) • Output Voltage Regulation (Economy Line Mode) 120V (±10%) • Output Voltage Regulation (Battery Mode) +/- 5% • UPS Output Receptacles (Surge Suppression Only) 5 UPS outlets, 5 surge-only outlets • Hot-Swap PDU options PDUB15 (2U / 8 5-15R outlets) • Output AC Waveform (AC Mode) Sine wave • Output AC Waveform (Battery Mode) PWM sine wave • Nominal Output Voltage(s) Supported 110V; 115V; 120V • Output Receptacles (10) 5-15R • Individually Controllable Load Banks No BATTERY • Battery Type Valve Regulated Lead Acid (VRLA) • Half Load Runtime (min.) 7.5 minutes (405 watts) • Expandable Runtime No • DC System Voltage (VDC) 24 • Battery Recharge Rate (Included Batteries) Less than 8 hours from 10% to 90% • Internal UPS Replacement Battery Cartridge RBC51 (requires 2) VOLTAGE REGULATION • Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 92 to 150 • Overvoltage Correction Input voltages between 129 and 147 are reduced by 15% • Undervoltage Correction Input voltages between 92 and 108 are boosted by 18% USER INTERFACE, ALERTS & CONTROLS • Front Panel LCD Display LCD screen with scroll buttons indicates Input voltage, Output voltage, Frequency (Hz), AVR boost / cut status, Output load in watts, Output load percentage, Battery voltage and Estimated runtime in minutes • Switches Power switch offers whole UPS power control; Scroll/mute button enables LCD selection options and silences audible alarm; Test button initiates self test • Alarm Cancel Operation Power-fail alarm can be silenced using alarm-cancel switch • Audible Alarm Audible alarm indicates power-failure and low-battery conditions SURGE / NOISE SUPPRESSION • UPS AC Suppression Joule Rating 650 • UPS AC Suppression Response Time Instantaneous • UPS Dataline Suppression 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet; Coax jacks (1 set) • EMI / RFI AC Noise Suppression Yes PHYSICAL • Primary Form Factor Tower • Cooling Method Fan • Installation Form Factors Supported with Included Accessories Tower • Primary UPS Depth (mm) 396 • Primary UPS Height (mm) 203 • Primary UPS Width (mm) 146 • Shipping Dimensions (hwd / in.) 11.20 x 9.10 x 19.40 • Shipping Weight (lbs.) 25.10 • UPS Power Module Dimensions (hwd, in.) 8 x 5.75 x 15.6 • UPS Power Module Weight (kg) 11.52 • UPS Power Module Weight (lbs.) 25.4 ENVIRONMENTAL • Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius • Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius • Relative Humidity 5 to 95%, non-condensing • AC Mode BTU / Hr. (Full Load) 98 • Battery Mode BTU / Hr. (Full Load) 826 • AC Mode Efficiency Rating (100% Load) 95% COMMUNICATIONS • PowerAlert Software For local monitoring via the UPS’s built-in USB port, download PowerAlert Local software at https://www.tripplite.com/poweralert • Communications Cable USB cabling included • WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications • Network UPS Tools Compatibility NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite • Network Management Card Description Network management not supported • Communications Interface USB (HID enabled) LINE / BATTERY TRANSFER • Transfer Time 2 milliseconds (AC to battery mode), 6 milliseconds (battery to AC mode) • Low Voltage Transfer to Battery Power (Setpoint) 92 • High Voltage Transfer to Battery Power (Setpoint) 150 FEATURES & SPECIFICATIONS • Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported • High Availability UPS Features Automatic Voltage Regulation (AVR); Surge/noise protection • Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS STANDARDS & COMPLIANCE • UPS Certifications ENERGY STAR Qualified; Meets FCC Part 15 Category B (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA) • Certification Details ENERGY STAR Version 2.0 Qualified WARRANTY • Product Warranty Period (U.S. & Canada) 3-year limited warranty • Connected Equipment Insurance (U.S., Canada & Puerto Rico) $250,000 Ultimate Lifetime Insurance
• OMNI1500LCDT line interactive UPS offers network-grade voltage regulation, surge suppression and long lasting battery support
• 10 built-in NEMA 5-15R outlets, 5 with UPS and surge suppression for vital components and 5 additional outlets with surge-only protection for devices not requiring battery support
• NEMA 5-15P input plug; 6ft / 1.8m line cord
• Maintains operation of connected equipment to prevent data loss, equipment damage and downtime associated with power failures and severe voltage fluctuations
• Line Interactive Automatic Voltage Regulation / AVR circuits continuously correct brownouts and overvoltages from 92 to 150V without using battery power
• Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges • Offers 7.5 minutes runtime 50% load (405 watts)
• Supports an entry level desktop system with LCD screen for up to 55 minutes during power failures (75 watts)
• LCD display continuously reports operating mode and battery charge level, plus additional UPS and site power data, such as input & output voltage, frequency, load percentage, load watts, battery voltage and estimated runtime in minutes
• USB port enables data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert
• HID-compliant USB interface also enables automatic integration with built-in power management and auto shutdown features of Windows and Mac OSX
• Built-in data line surge suppression offers protection for equipment with single-line dialup or network ethernet connection, plus one set of coax jacks for CATV / broadcast line protection
• Meets strict ENERGY STAR Version 2.0 efficiency guidelines
• Optional PDUB15 bypass PDU enables hot-swappable UPS replacement with no disruption to connected equipment
• 10 built-in NEMA 5-15R outlets, 5 with UPS and surge suppression for vital components and 5 additional outlets with surge-only protection for devices not requiring battery support
• NEMA 5-15P input plug; 6ft / 1.8m line cord
• Maintains operation of connected equipment to prevent data loss, equipment damage and downtime associated with power failures and severe voltage fluctuations
• Line Interactive Automatic Voltage Regulation / AVR circuits continuously correct brownouts and overvoltages from 92 to 150V without using battery power
• Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges • Offers 7.5 minutes runtime 50% load (405 watts)
• Supports an entry level desktop system with LCD screen for up to 55 minutes during power failures (75 watts)
• LCD display continuously reports operating mode and battery charge level, plus additional UPS and site power data, such as input & output voltage, frequency, load percentage, load watts, battery voltage and estimated runtime in minutes
• USB port enables data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert
• HID-compliant USB interface also enables automatic integration with built-in power management and auto shutdown features of Windows and Mac OSX
• Built-in data line surge suppression offers protection for equipment with single-line dialup or network ethernet connection, plus one set of coax jacks for CATV / broadcast line protection
• Meets strict ENERGY STAR Version 2.0 efficiency guidelines
• Optional PDUB15 bypass PDU enables hot-swappable UPS replacement with no disruption to connected equipment
