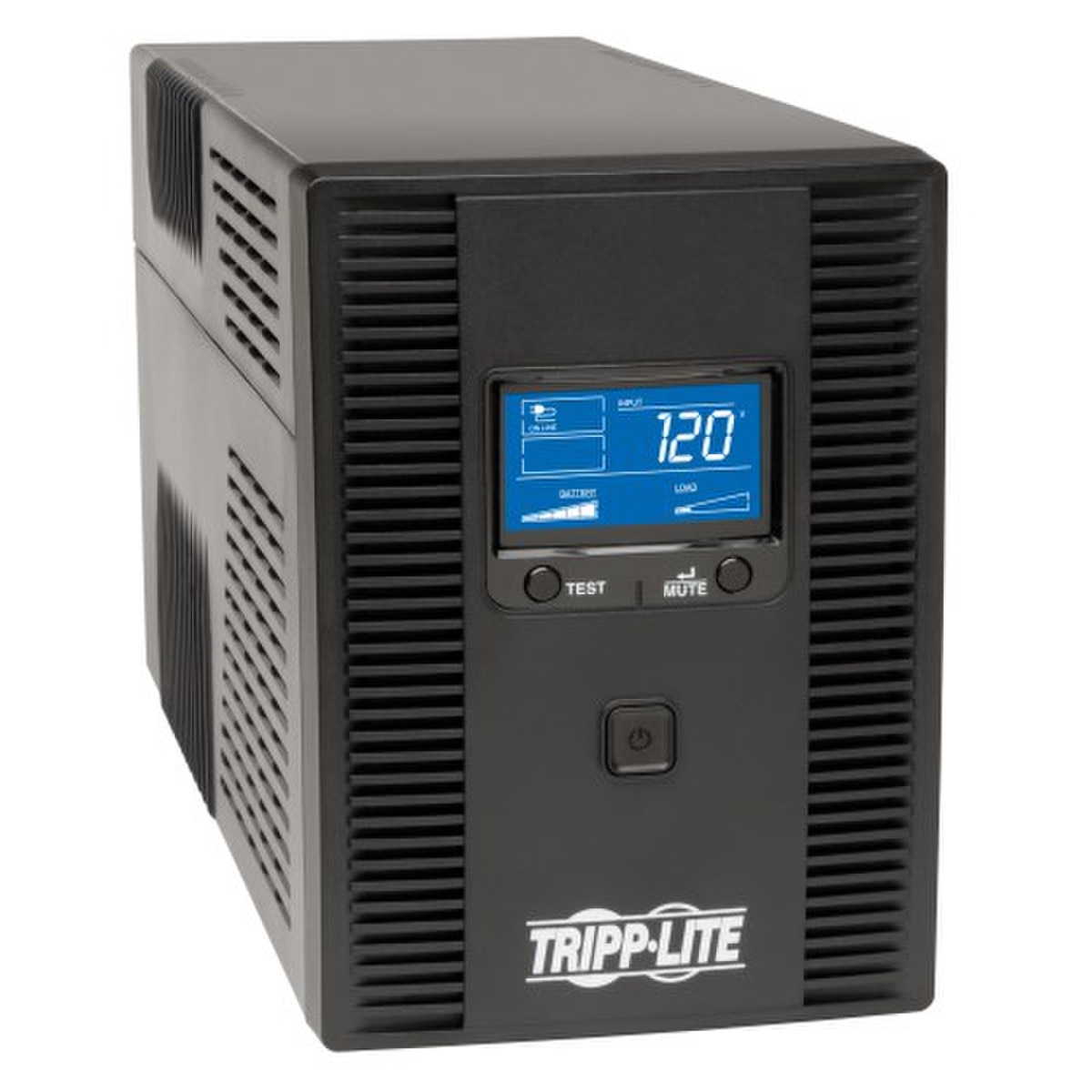

Tripp-Lite SMART1500LCDT UPS SmartPro LCD 120V 50/60Hz 1500VA 900W Line-Interactive UPS, AVR, Tower, LCD, USB, 10 Outlets
• Manufacturer: Tripp-Lite
• Manufacturer PN: SMART1500LCDT
• UPS Type: Line-Interactive
INPUT
• Rated input current (Maximum Load): 12A
• Nominal Input Voltage(s) Supported: 120V AC
• UPS Input Connection Type: 5-15P
• Input Circuit Breakers: 20A
• UPS Input Cord Length (ft.): 6
• Recommended Electrical Service: 15A 120V
• Input Phase: Single-Phase
OUTPUT
• Output Volt Amp Capacity (VA): 1500
• Output Capacity (kVA): 1.5
• Output Watt Capacity (Watts): 900
• Nominal Voltage Details: 120v nominal output in battery mode
• Frequency Compatibility: 50 / 60 Hz
• Frequency Compatibility Details: Automatic frequency selection
• Output Voltage Regulation (Line Mode): 120V (+9% / -12%)
• Output Voltage Regulation (Battery Mode): 120V (±10%)
• UPS Output Receptacles (Surge Suppression Only): 5 UPS outlets, 5 surge-only outlets
• Output AC Waveform (AC Mode): Sine wave
• Output AC Waveform (Battery Mode): PWM sine wave
• Nominal Output Voltage(s) Supported: 110V; 115V; 120V
• Output Receptacles: (10) 5-15R
• Individually Controllable Load Banks : No
BATTERY
• Battery Type: Valve Regulated Lead Acid (VRLA)
• Half Load Runtime: (min.) : 10 minutes (450 watts)
• Expandable Runtime: : No
• DC System Voltage (VDC): 24
• Battery Recharge Rate (Included Batteries): Less than 8 hours from 10% to 90%
• Internal UPS Replacement Battery Cartridge: RBC51 (requires 2)
VOLTAGE REGULATION
• Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 92 to 150
• Overvoltage Correction : Input voltages between 129 and 147 are reduced by 15%
• Undervoltage Correction: Input voltages between 92 and 108 are boosted by 18%
USER INTERFACE, ALERTS & CONTROLS
• Front Panel LCD Display: LCD screen with scroll buttons indicates Input voltage, Output voltage, Frequency (Hz), AVR boost / cut status, Output load in watts, Output load percentage, Battery voltage and Estimated Runtime: in minutes
• Switches: Power switch offers whole UPS power control; Scroll/mute button enables LCD selection options and silences audible alarm; Test button initiates self test
• Alarm Cancel Operation: Power-fail alarm can be silenced using alarm-cancel switch
• Audible Alarm: Audible alarm indicates power-failure and low-battery conditions
SURGE / NOISE SUPPRESSION
• UPS AC Suppression Joule Rating: 650
• UPS AC Suppression Response Time: Instantaneous
• UPS Dataline Suppression: 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet; Coax jacks (1 set)
• EMI / RFI AC Noise Suppression : Yes
PHYSICAL
• Primary Form Factor: Tower
• Cooling Method: Fan
• Installation Form Factors Supported with Included Accessories: Tower
• Primary UPS Depth (mm): 391
• Primary UPS Height (mm): 203
• Primary UPS Width (mm): 146
• Shipping Dimensions (hwd / in.): 11.10 x 9.00 x 19.30
• Shipping Weight (lbs.): 28.00
• UPS Power Module Dimensions (hwd, in.): 8 x 5.75 x 15.4
• UPS Power Module Weight (kg): 12.25
• UPS Power Module Weight (lbs.): 27
ENVIRONMENTAL
• Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
• Storage Temperature Range: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
• Relative Humidity: 0 to 95%, non-condensing
• AC Mode BTU / Hr. (Full Load) : 119
• Battery Mode BTU / Hr. (Full Load) : 867
• AC Mode Efficiency Rating (100% Load): 95%
• Audible Noise: Less than 36 dB, front side 1m
COMMUNICATIONS
• Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions
• PowerAlert Software: For local monitoring via the UPS’s built-in USB port, download PowerAlert Local software at https://www.tripplite.com/poweralert
• Communications Cable: USB and cabling included
• WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
• Network Management Card Description: Network management not supported
• Communications Interface: USB (HID enabled)
LINE / BATTERY TRANSFER
• Transfer Time : 2 milliseconds (AC to battery mode), 6 milliseconds (battery to AC mode)
• Low Voltage Transfer to Battery Power (Setpoint): 92
• High Voltage Transfer to Battery Power (Setpoint): 150
FEATURES & SPECIFICATIONS
• Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported
• High Availability UPS Features : Automatic Voltage Regulation (AVR); Hot swappable batteries; Surge/noise protection
• Green Energy-Saving Features: Greater than 95% efficiency - GREEN UPS
STANDARDS & COMPLIANCE
• UPS Certifications: Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
WARRANTY
• Product Warranty Period (U.S. & Canada): 3-year limited warranty
• Connected Equipment Insurance (U.S., Canada & Puerto Rico): $250,000 Ultimate Lifetime Insurance
