  • Tripp-Lite TLP615B Surge Protector Protect It! 6-Outlet Surge Protector, 15 ft. Cord, 790 Joules, Black Housing

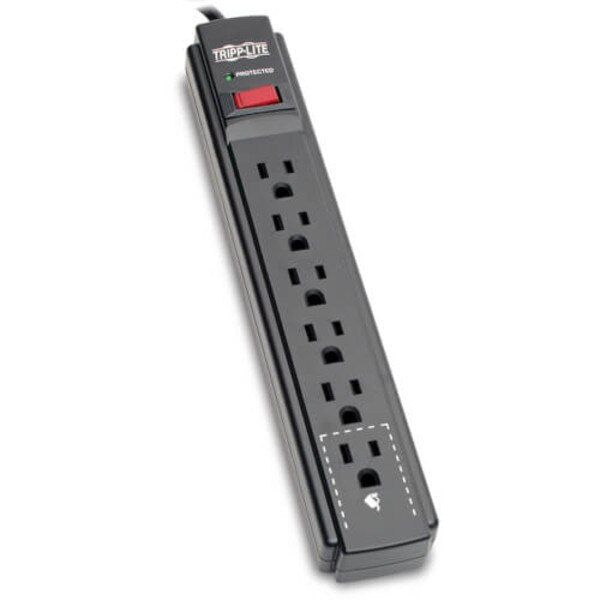

Tripp-Lite TLP615B Surge Protector Protect It! 6-Outlet Surge Protector, 15 ft. Cord, 790 Joules, Black Housing

(0)No Reviews yet
$33.93
SKU: 101805
MPN: TLP615B
DESCRIPTION:
Safeguard your workstation or home electronics against surges, spikes and line noise. Ideal for protecting your computer, printer, scanner, external hard drive and other sensitive electronics.
• 6 NEMA 5-15R outlets, including one for bulky transformers
• Surge suppression rating of 790 joules
• Filters out threatening EMI/RFI line noise
• 15A resettable circuit breaker prevents dangerous overloads
• 15 ft. AC power cord reaches distant outlets
• This product is covered by a Lifetime Limited Warranty (coverage details)
• $20,000 Ultimate Lifetime Insurance

Available to Order

NEW

790-Joule Surge Protection for Home or Office Electronics
• 790-joule rating protects your computer, printer, scanner, external hard drive and other sensitive electronic components against even the strongest surges and spikes
• Backed by Tripp Lite's $20,000 Ultimate Lifetime Insurance for any connected components damaged by power surge (U.S., Canada and Puerto Rico only)
• Full normal mode (H-N) and common mode (N-G/H-G) line surge suppression
• Filters out disruptive EMI/RFI line noise that can cause equipment damage or data loss
• Exceeds IEEE 587 Category A and B surge suppression specifications

6 Outlets Accept Wide Range of Electronic Devices
• 6 NEMA 5-15R AC outlets accept most computers and peripherals
• Special end outlet designed for bulky transformers without blocking other outlets

Premium Safety Features
• Lighted on/off switch provides one-touch control over connected equipment
• Automatic shutoff permanently cuts power to outlets if protection circuit is incapacitated, preventing equipment damage and indicating replacement is required
• Green LED shows protection status at a glance

Fits Effortlessly Into Your Workstation
• 15 ft. AC power cord with NEMA 5-15P plug long enough to reach distant outlets
• Keyhole slots on bottom panel provide convenient wall or desk mounting options
• Black plastic housing designed for long life

Auto-Shutdown
• Automatic shutoff permanently cuts power to outlets if protection circuit is incapacitated, preventing equipment damage and indicating replacement is required
• Manufacturer: Tripp-Lite
• Manufacturer PN: TLP615B

INPUT
• Nominal Input Voltage(s) Supported: 120V AC
• Recommended Electrical Service: 120V (110-125V)
• Input Cord Gauge Type: 14 gauge; SJT
• Voltage Compatibility (VAC): 120
• Maximum Surge Amps: 35500
• Input Plug Type: NEMA 5-15P
• Input Cord Length (ft.): 15
• Right-Angle Plug: No

OUTPUT
• Frequency Compatibility: 60 Hz
• Output (Watts): 1800
• Output Receptacles: (6) 5-15R
• Circuit Breaker (amps): 15
• Overload Protection: 15A resettable illuminated combo switch / circuit breaker
• Transformer Accommodation: (2) Yes
• Outlet Orientation: Single row of 6 outlets

USER INTERFACE, ALERTS & CONTROLS
• Diagnostic LED(s): Yes
• Switches: Combination AC circuit breaker and 2 position red illuminated on/off power switch
• Diagnostic LED Details: Built-in LED confirms suppressor "protection present" (green) status

SURGE / NOISE SUPPRESSION
• AC Suppression Joule Rating : 790
• AC Suppression Response Time : < 1 ns
• Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
• UL1449 Let Through Rating: 500V
• EMI / RFI Filtering : Up to 20 dB
• Automatic Shut-Off : Yes

DATALINE SURGE SUPPRESSION
• Network (Ethernet) Protection: No

PHYSICAL
• Material of Construction: Plastic
• Power Cord Color: Black
• Housing Color: Black
• Mounting Holes or Slots: Yes
• Slot or Hole Mount Measurement (Center to Center): Distance between slots = 101mm; Distance between slot height = 28mm
• Outlets Measurement (Center to Center): 28.5mm
• Receptacle Color: Black
• Shipping Dimensions (hwd / in.): 13.20 x 5.80 x 1.80
• Shipping Weight (lbs.): 2.05
• Unit Dimensions (hwd / in.): 10.8 x 1.85 x 1.23
• Unit Weight (lbs.): 1.60

STANDARDS & COMPLIANCE
• Canada: cUL
• Approvals: Exceeds IEEE 587 category A&B specifications
• UL1449 3rd Edition (AC Suppression): UL1449 3rd EDITION
• UL1363 (Power Tap): UL1363

WARRANTY
• Product Warranty Period (Worldwide): Lifetime limited warranty
• Connected Equipment Insurance (U.S., Canada & Puerto Rico): $20,000 Ultimate Lifetime Insurance

Downloads:

  • Tech specifications
CasinoTech PN 101805 Tech Sheet
  • Product Brochure
