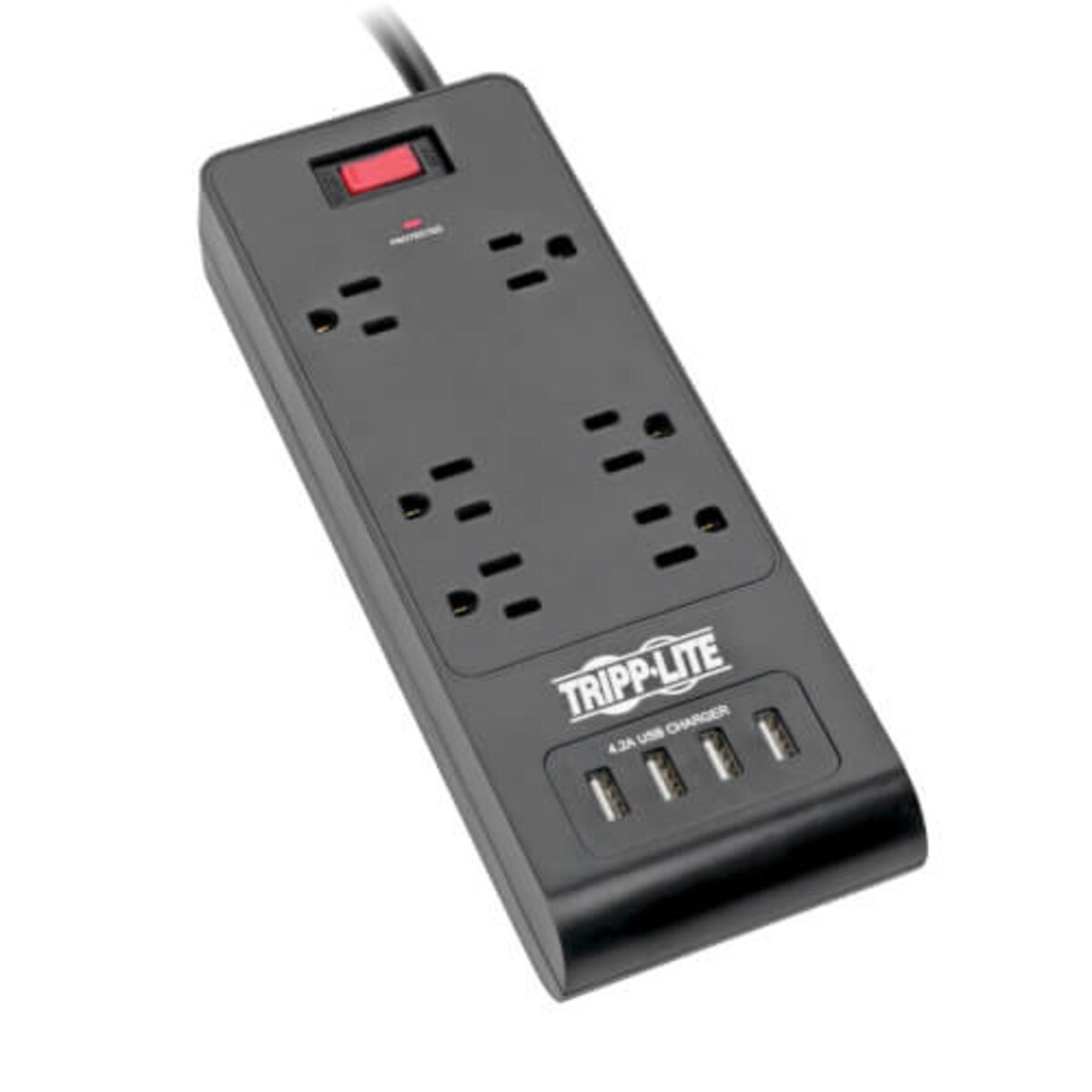

Tripp-Lite TLP664USBB Surge Protector 6-Outlet Surge Protector, 4 USB Charging Ports (4.2A Shared), 6 ft. (1.83 m) Cord, 900 Joules, Black
6-Outlet Surge Protector with USB Safeguards Your Sensitive Electronics
• Ideal for your home or office workstation, this Protect It!® 6-outlet surge protector features a surge protection rating of 900 joules to defend your sensitive electronic components against even the strongest power surges and spikes. Because residential power outlets have three wires—hot line (H), neutral (N) and ground (G)—the TLP664USBB protects all three, covering the two protection modes: full normal mode (H-N) and common mode (N-G/H-G).
NEMA 5-15R Outlets Accept a Wide Range of Electronic Devices
• Plug your PC, printer, wireless router, game console, television, sound system or other home/office electronics into six NEMA 5-15R outlets to protect them against dangerous surges, spikes and line noise. Two outlets are designed to accept bulky transformers without blocking adjacent outlets.
Surge Protector with 4 USB Ports That Share 4.2 Amps of Charging Power
• Four USB-A ports are available for charging your smartphone, tablet and other USB mobile devices.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
• Various electromagnetic and radio sources found in virtually every home and business can cause disruptive interference on the AC line. Known as EMI (electromagnetic interference) and RFI (radio frequency interference), this line noise is a common cause of performance problems. This surge protector filters out disruptive line noise that can disturb your electronics and inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
Includes the Latest Safety Features
• The lighted on/off switch provides one-touch control over connected equipment. A green LED confirms your connected equipment is protected.
Versatile Surge Protector Provides Multiple Installation Options
• This surge protector with 6-ft. (1.83 m) cord and NEMA 5-15P plug allows you flexibility in placing the unit away from a wall outlet. Keyhole slots incorporated into the bottom panel provide convenient wall or desk mounting options for the black plastic housing.
• Ideal for your home or office workstation, this Protect It!® 6-outlet surge protector features a surge protection rating of 900 joules to defend your sensitive electronic components against even the strongest power surges and spikes. Because residential power outlets have three wires—hot line (H), neutral (N) and ground (G)—the TLP664USBB protects all three, covering the two protection modes: full normal mode (H-N) and common mode (N-G/H-G).
NEMA 5-15R Outlets Accept a Wide Range of Electronic Devices
• Plug your PC, printer, wireless router, game console, television, sound system or other home/office electronics into six NEMA 5-15R outlets to protect them against dangerous surges, spikes and line noise. Two outlets are designed to accept bulky transformers without blocking adjacent outlets.
Surge Protector with 4 USB Ports That Share 4.2 Amps of Charging Power
• Four USB-A ports are available for charging your smartphone, tablet and other USB mobile devices.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
• Various electromagnetic and radio sources found in virtually every home and business can cause disruptive interference on the AC line. Known as EMI (electromagnetic interference) and RFI (radio frequency interference), this line noise is a common cause of performance problems. This surge protector filters out disruptive line noise that can disturb your electronics and inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
Includes the Latest Safety Features
• The lighted on/off switch provides one-touch control over connected equipment. A green LED confirms your connected equipment is protected.
Versatile Surge Protector Provides Multiple Installation Options
• This surge protector with 6-ft. (1.83 m) cord and NEMA 5-15P plug allows you flexibility in placing the unit away from a wall outlet. Keyhole slots incorporated into the bottom panel provide convenient wall or desk mounting options for the black plastic housing.
• Manufacturer: Tripp-Lite
• Manufacturer PN: TLP664USBB
INPUT
• Nominal Input Voltage(s) Supported: 120V AC
• Recommended Electrical Service: 120V (110-125V)
• Input Cord Gauge Type: 14 gauge; SJT
• Voltage Compatibility (VAC): 120
• Maximum Surge Amps: 35500
• Input Plug Type: NEMA 5-15P
• Input Cord Length (ft.): 6
• Right-Angle Plug: No
OUTPUT
• Frequency Compatibility: 50 / 60 Hz
• Output (Watts): 1800
• Output Receptacles: (6) 5-15R
• Circuit Breaker (amps): 15
• Overload Protection: 15A resettable illuminated combo switch / circuit breaker
• Transformer Accommodation: (4) Yes
• Outlet Orientation: Single row of 6 outlets
USER INTERFACE, ALERTS & CONTROLS
• Diagnostic LED(s): Yes
• Switches: Combination AC circuit breaker and 2 position red illuminated on/off power switch
• Diagnostic LED Details: Built-in LED confirms suppressor "protection present" (green) status
CHARGING
• Number of Charging Ports: 4
• Total Charging Watts: 21
• Charging Method: USB
• Charging Port Type: USB A (FEMALE)
• Charging Ports / Amps: (4) 4.2A
• Overcharge Protection: No
SURGE / NOISE SUPPRESSION
• AC Suppression Joule Rating : 900
• AC Suppression Response Time : < 1 ns
• Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
• UL1449 Let Through Rating: 800,800,800
• EMI / RFI Filtering : Yes
DATALINE SURGE SUPPRESSION
• Network (Ethernet) Protection: No
PHYSICAL
• Material of Construction: Plastic
• Power Cord Color: Black
• Housing Color: Black
• Mounting Holes or Slots: Yes
• Receptacle Color: Black
• Shipping Dimensions (hwd / in.): 11.02 x 6.69 x 1.65
• Unit Dimensions (hwd / in.): 9.45 x 3.58 x 1.45
FEATURES & SPECIFICATIONS
• GaN Technology : No
STANDARDS & COMPLIANCE
• Canada: cUL
• Approvals: Exceeds IEEE 587 category A&B specifications
• UL1449 3rd Edition (AC Suppression): UL1449 3rd EDITION
• UL1363 (Power Tap): UL1363
WARRANTY
• Product Warranty Period (Worldwide): Lifetime limited warranty
• Connected Equipment Insurance (U.S., Canada & Puerto Rico): $25,000 Ultimate Lifetime Insurance
• Manufacturer PN: TLP664USBB
INPUT
• Nominal Input Voltage(s) Supported: 120V AC
• Recommended Electrical Service: 120V (110-125V)
• Input Cord Gauge Type: 14 gauge; SJT
• Voltage Compatibility (VAC): 120
• Maximum Surge Amps: 35500
• Input Plug Type: NEMA 5-15P
• Input Cord Length (ft.): 6
• Right-Angle Plug: No
OUTPUT
• Frequency Compatibility: 50 / 60 Hz
• Output (Watts): 1800
• Output Receptacles: (6) 5-15R
• Circuit Breaker (amps): 15
• Overload Protection: 15A resettable illuminated combo switch / circuit breaker
• Transformer Accommodation: (4) Yes
• Outlet Orientation: Single row of 6 outlets
USER INTERFACE, ALERTS & CONTROLS
• Diagnostic LED(s): Yes
• Switches: Combination AC circuit breaker and 2 position red illuminated on/off power switch
• Diagnostic LED Details: Built-in LED confirms suppressor "protection present" (green) status
CHARGING
• Number of Charging Ports: 4
• Total Charging Watts: 21
• Charging Method: USB
• Charging Port Type: USB A (FEMALE)
• Charging Ports / Amps: (4) 4.2A
• Overcharge Protection: No
SURGE / NOISE SUPPRESSION
• AC Suppression Joule Rating : 900
• AC Suppression Response Time : < 1 ns
• Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
• UL1449 Let Through Rating: 800,800,800
• EMI / RFI Filtering : Yes
DATALINE SURGE SUPPRESSION
• Network (Ethernet) Protection: No
PHYSICAL
• Material of Construction: Plastic
• Power Cord Color: Black
• Housing Color: Black
• Mounting Holes or Slots: Yes
• Receptacle Color: Black
• Shipping Dimensions (hwd / in.): 11.02 x 6.69 x 1.65
• Unit Dimensions (hwd / in.): 9.45 x 3.58 x 1.45
FEATURES & SPECIFICATIONS
• GaN Technology : No
STANDARDS & COMPLIANCE
• Canada: cUL
• Approvals: Exceeds IEEE 587 category A&B specifications
• UL1449 3rd Edition (AC Suppression): UL1449 3rd EDITION
• UL1363 (Power Tap): UL1363
WARRANTY
• Product Warranty Period (Worldwide): Lifetime limited warranty
• Connected Equipment Insurance (U.S., Canada & Puerto Rico): $25,000 Ultimate Lifetime Insurance
