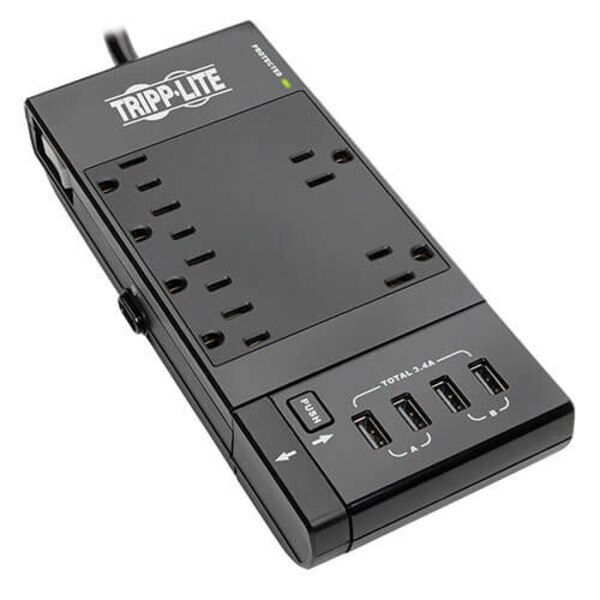

Tripp-Lite TLP66USBR Surge Protector Protect It! 6-Outlet Surge Protector, 4 USB Charging Ports, 6 ft. Cord, 1080 Joules, Diagnostic LED, Black
1080-Joule Surge Protection for Home or Office Electronics
• Protects your computer, printer, scanner, router, modem and other small home electronics against surges and spikes
• Recommended for desktop, network or home electronics applications requiring AC line protection
• Full normal mode (H-N) and common mode (N-G/H-G) line surge suppression
• Filters out disruptive EMI/RFI line noise that can cause equipment damage or data loss
• Exceeds IEEE 587 Category A and B surge suppression specifications
6 Outlets Accept Wide Range of Electronic Devices
• 6 NEMA 5-15R AC outlets accept most computers and peripherals
• 2 outlets specially spaced for bulky transformers without blocking other outlets
• 4 USB ports with 3.4A shared
Premium Safety Features
• Lighted on/off switch provides one-touch control over connected equipment
• Automatic shutoff permanently cuts power to outlets if protection circuit is incapacitated, preventing equipment damage and indicating replacement is required
• Diagnostic LED confirms protection status at a glance
• Conforms to current UL 1449 3rd Edition safety standards
Fits Effortlessly Into Your Workstation
• 6 ft. AC power cord with NEMA 5-15P plug reaches nearby outlets
• Clip-on or on-site USB charger with 4.5 ft. retractable extender cord
• Black plastic housing designed for long life
Backed by Tripp Lite's Ultimate Lifetime Insurance
• $50,000 Ultimate Lifetime Insurance covers any connected components damaged by power surge (U.S., Canada and Puerto Rico only)
• Protects your computer, printer, scanner, router, modem and other small home electronics against surges and spikes
• Recommended for desktop, network or home electronics applications requiring AC line protection
• Full normal mode (H-N) and common mode (N-G/H-G) line surge suppression
• Filters out disruptive EMI/RFI line noise that can cause equipment damage or data loss
• Exceeds IEEE 587 Category A and B surge suppression specifications
6 Outlets Accept Wide Range of Electronic Devices
• 6 NEMA 5-15R AC outlets accept most computers and peripherals
• 2 outlets specially spaced for bulky transformers without blocking other outlets
• 4 USB ports with 3.4A shared
Premium Safety Features
• Lighted on/off switch provides one-touch control over connected equipment
• Automatic shutoff permanently cuts power to outlets if protection circuit is incapacitated, preventing equipment damage and indicating replacement is required
• Diagnostic LED confirms protection status at a glance
• Conforms to current UL 1449 3rd Edition safety standards
Fits Effortlessly Into Your Workstation
• 6 ft. AC power cord with NEMA 5-15P plug reaches nearby outlets
• Clip-on or on-site USB charger with 4.5 ft. retractable extender cord
• Black plastic housing designed for long life
Backed by Tripp Lite's Ultimate Lifetime Insurance
• $50,000 Ultimate Lifetime Insurance covers any connected components damaged by power surge (U.S., Canada and Puerto Rico only)
• Manufacturer: Tripp-Lite
• Manufacturer PN: TLP66USBR
INPUT
• Nominal Input Voltage(s) Supported: 120V AC
• Recommended Electrical Service: 120V (110-125V)
• Input Plug Features: Right Angle (36D)
• Input Cord Gauge Type: 14 gauge; SJT
• Voltage Compatibility (VAC): 120
• Maximum Surge Amps: 36000
• Input Plug Type: NEMA 5-15P
• Input Cord Length (ft.): 6
• Right-Angle Plug: No
OUTPUT
• Frequency Compatibility: 60 Hz
• Output (Watts): 1800
• Output Receptacles: (6) 5-15R
• Circuit Breaker (amps): 15
• Transformer Accommodation: (4) Yes
• Right-Angle Outlets: Yes
USER INTERFACE, ALERTS & CONTROLS
• Diagnostic LED(s): Yes
• Switches: Combination AC circuit breaker and 2 position on/off power switch
• Diagnostic LED Details: Built-in LED confirms suppressor "protection present" (green) status
CHARGING
• Number of Charging Ports: 4
• Total Charging Watts: 17
• Charging Method: USB
• Charging Port Type: USB A (FEMALE)
• Charging Ports / Amps: (4) 3.4A
• Overcharge Protection: No
SURGE / NOISE SUPPRESSION
• AC Suppression Joule Rating : 1080
• AC Suppression Response Time : < 1 ns
• Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
• UL1449 Let Through Rating: 400V
• EMI / RFI Filtering : Yes
• Automatic Shut-Off : Yes
DATALINE SURGE SUPPRESSION
• Network (Ethernet) Protection: No
PHYSICAL
• Material of Construction: Plastic
• Power Cord Color: Black
• Housing Color: Black
• Mounting Holes or Slots: No
• Receptacle Color: Black
• Shipping Dimensions (hwd / in.): 9.65 x 6.69 x 1.77
• Shipping Weight (lbs.): 1.91
• Unit Dimensions (hwd / in.): 9.6 x 6.7 x 1.8
• Unit Weight (lbs.): 1.8
• Input Cord Color: Black
FEATURES & SPECIFICATIONS
• GaN Technology : No
STANDARDS & COMPLIANCE
• Canada: cUL
• Approvals: Exceeds IEEE 587 category A&B specifications
• UL1449 3rd Edition (AC Suppression): UL1449 3rd Edition
• UL1363 (Power Tap): UL1363
WARRANTY
• Product Warranty Period (Worldwide): Lifetime limited warranty
• Connected Equipment Insurance (U.S., Canada & Puerto Rico): $50,000 Ultimate Lifetime Insurance
• Manufacturer PN: TLP66USBR
INPUT
• Nominal Input Voltage(s) Supported: 120V AC
• Recommended Electrical Service: 120V (110-125V)
• Input Plug Features: Right Angle (36D)
• Input Cord Gauge Type: 14 gauge; SJT
• Voltage Compatibility (VAC): 120
• Maximum Surge Amps: 36000
• Input Plug Type: NEMA 5-15P
• Input Cord Length (ft.): 6
• Right-Angle Plug: No
OUTPUT
• Frequency Compatibility: 60 Hz
• Output (Watts): 1800
• Output Receptacles: (6) 5-15R
• Circuit Breaker (amps): 15
• Transformer Accommodation: (4) Yes
• Right-Angle Outlets: Yes
USER INTERFACE, ALERTS & CONTROLS
• Diagnostic LED(s): Yes
• Switches: Combination AC circuit breaker and 2 position on/off power switch
• Diagnostic LED Details: Built-in LED confirms suppressor "protection present" (green) status
CHARGING
• Number of Charging Ports: 4
• Total Charging Watts: 17
• Charging Method: USB
• Charging Port Type: USB A (FEMALE)
• Charging Ports / Amps: (4) 3.4A
• Overcharge Protection: No
SURGE / NOISE SUPPRESSION
• AC Suppression Joule Rating : 1080
• AC Suppression Response Time : < 1 ns
• Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
• UL1449 Let Through Rating: 400V
• EMI / RFI Filtering : Yes
• Automatic Shut-Off : Yes
DATALINE SURGE SUPPRESSION
• Network (Ethernet) Protection: No
PHYSICAL
• Material of Construction: Plastic
• Power Cord Color: Black
• Housing Color: Black
• Mounting Holes or Slots: No
• Receptacle Color: Black
• Shipping Dimensions (hwd / in.): 9.65 x 6.69 x 1.77
• Shipping Weight (lbs.): 1.91
• Unit Dimensions (hwd / in.): 9.6 x 6.7 x 1.8
• Unit Weight (lbs.): 1.8
• Input Cord Color: Black
FEATURES & SPECIFICATIONS
• GaN Technology : No
STANDARDS & COMPLIANCE
• Canada: cUL
• Approvals: Exceeds IEEE 587 category A&B specifications
• UL1449 3rd Edition (AC Suppression): UL1449 3rd Edition
• UL1363 (Power Tap): UL1363
WARRANTY
• Product Warranty Period (Worldwide): Lifetime limited warranty
• Connected Equipment Insurance (U.S., Canada & Puerto Rico): $50,000 Ultimate Lifetime Insurance
