  • APC SMC1500C Smart-UPS 1500VA, Tower, LCD 120V with SmartConnect Port

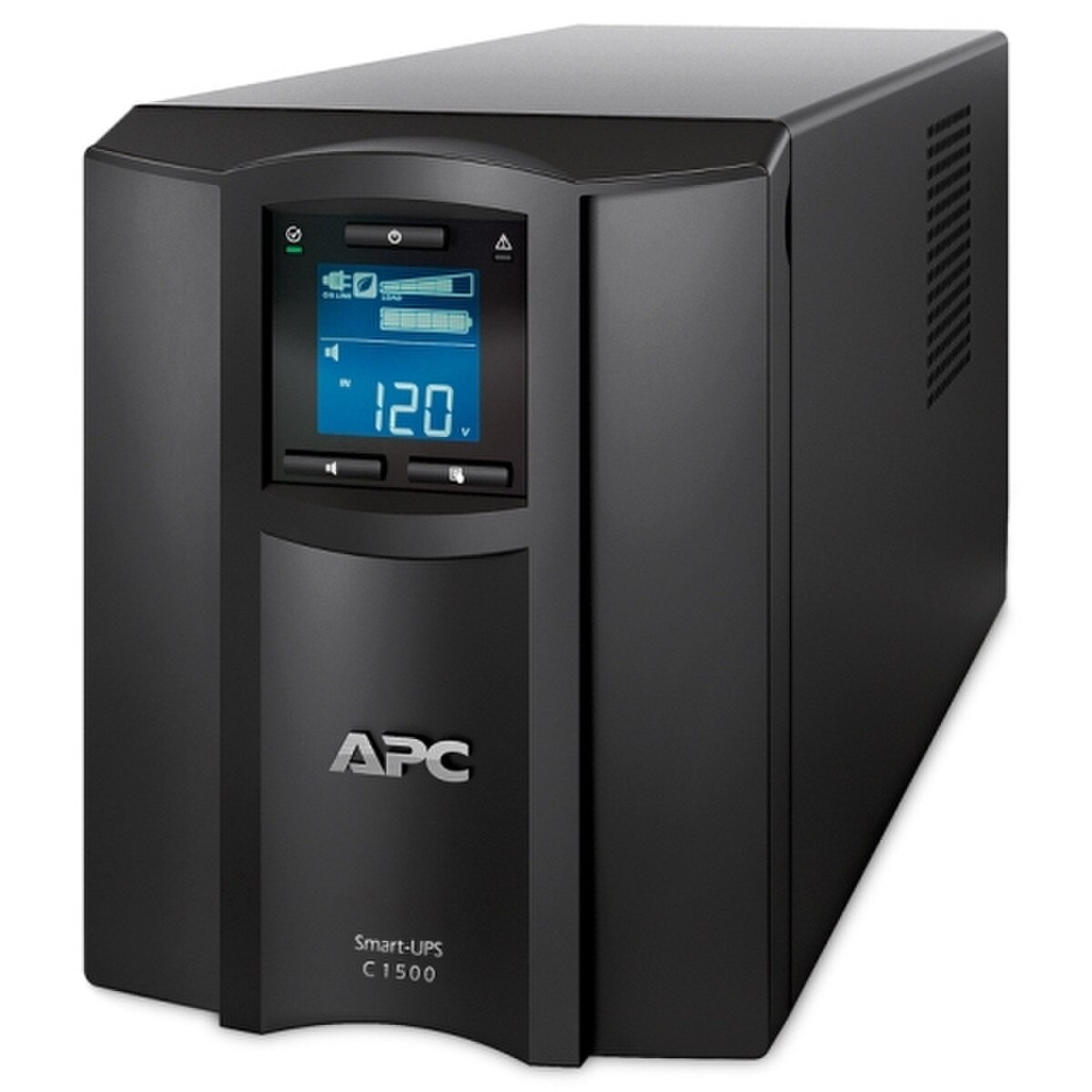

APC SMC1500C Smart-UPS 1500VA, Tower, LCD 120V with SmartConnect Port

(0)No Reviews yet
$685.27
SKU: 101820
MPN: SMC1500C
DESCRIPTION:

APC Smart-UPS 1500VA, Tower, LCD 120V with SmartConnect Port
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: USB cable


Output power capacity
• 900 Watts / 1.44kVA
Output Connections
• (8) NEMA 5-15R (Battery Backup)
Nominal Output Voltage
• 120V
Nominal Input Voltage
• 120V
Input Connections
• NEMA 5-15P
Cord Length
• 6ft (1.8meters)

Available to Order

NEW

Cold-start capable
• Provides temporary battery power when the utility power is out.
Green mode
• Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High online efficiency
• Reduces utility costs, generates less heat.
LCD Status Display
• Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
Pure sine wave output on battery
• Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
SmartConnect
• Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
Temperature-compensated battery charging
• Prolongs battery life by regulating the charge voltage according to battery temperature.
• Manufacturer: APC
• Manufacturer PN: SMC1500C


Output
Max Configurable Power (Watts)
• 900 Watts / 1.44kVA
Output Voltage Distortion
• Less than 5 %
Output Frequency (sync to mains)
• 50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages
• 110 V, 125 V
Topology
• Line interactive
Waveform type
• Sine wave
Transfer Time
• 6 ms typical : 10 ms maximum


Input
Input frequency
• 50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations
• 85 - 136 Adjustable, 93 - 130V
Number of Power Cords
• 1
Other Input Voltages
• 110 V, 125 V


Batteries & Runtime
Battery type
• Lead-acid battery
Typical recharge time
• 3hour(s)
Replacement Battery
• RBC6
Expected Battery Life (years)
• 3 - 5
RBC Quantity
• 1
Battery Charge Power (Watts)
• 96 Watts
Runtime
• View Runtime Graph
Efficiency
• View Efficiency Graph


Communications & Management
Interface Port(s)
• USB
Control panel
• Multifunction LCD status and control console
Audible Alarm
• Alarm when on battery : distinctive low battery alarm : configurable delays


Surge Protection and Filtering
Surge energy rating
• 680Joules
Filtering
• Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449


Physical
Maximum Height
• 8.62inches (219MM, 21.9CM)
Maximum Width
• 6.73inches (171MM, 17.1CM)
Maximum Depth
• 17.28inches (439MM, 43.9CM)
Net Weight
• 44.31lbs. (20.1KG)
Shipping weight
• 49.91lbs. (22.64KG)
Shipping Height
• 12.99inches (330MM, 33.0CM)
Shipping Width
• 12.99inches (330MM, 33.0CM)
Shipping Depth
• 23.23inches (590MM, 59.0CM)
Color
• Black
Units per Pallet
• 12.0
Environmental
• Operating Temperature
32 - 104 °F (0 - 40 °C)
• Operating Relative Humidity
0 - 95 %
• Operating Elevation
0 - 10000ft (0 - 3048meters)
• Storage Temperature
-15 - 45 °C
• Storage Relative Humidity
0 - 95 %
• Storage Elevation
0 - 50000ft (0 - 15240meters)
• Audible noise at 1 meter from surface of unit
45.0dBA
• Online thermal dissipation
150.0BTU/hr


Conformance
Approvals
• CSA C22.2 No 107.1, cULus, ENERGY STAR V2.0 (USA), FCC part 15 class A, ICES-003, UL 1778
Equipment protection policy
• Lifetime : $150000
Standard warranty
• 2 years repair or replace


Sustainable Offer Status
RoHS
• Compliant
Proposition 65 Warning
• Available in Documentation tab

Downloads:

  • Tech specifications
CasinoTech PN 101820 Tech Sheet
APC Smart UPS Installation Guide - SMC Models
  • Product Brochure
